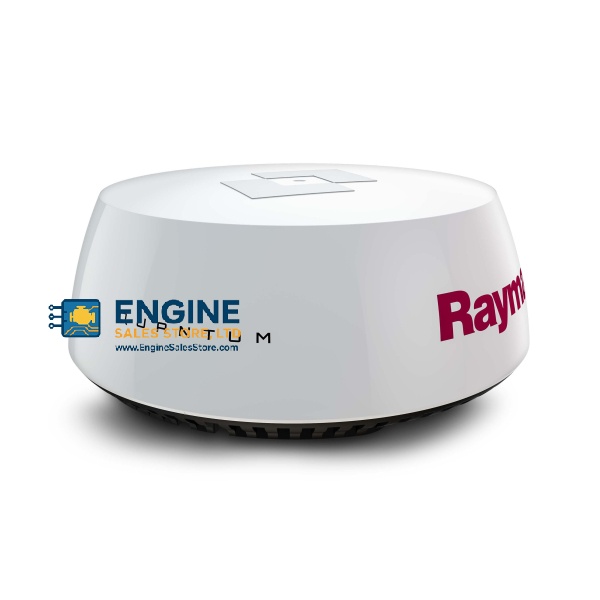

QUANTUM - CHIRP PULSE COMPRESSION RADAR

Exclusive Raymarine ATX advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
CHIRP Pulse compression ensures more radar energy reaches each target, resulting in superior imaging on long ranges
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Immediate Awareness

Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation

Easy to upgrade.  The same bolt pattern as previous generation radars.
Optional Quantum adapter cable eliminates the need to run new radar cables when upgrading
Quantum’s small diameter power cable is easy to route through tight spaces
Wired or wireless. Quantum features Wi-Fi for connecting wirelessly to Raymarine chartplotter displays.

Energy Efficient and Lightweight

Weighs 50% less than traditional magnetron radars
Safe Emissions thanks to Quantum’s low power solid state radar transmitter
Very low power consumption (17 Watts transmit and 7 watts standby)
Extended vessel battery life when under sail.

FEATURES

Wi-FI only version allows for a quick, simple installation
Scanner includes 10m power cable and can utilize existing cables using a separately sold adapter if used as an upgrade
Provides excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
Utilizes CHIRP Pulse compression, ensuring more energy reaches each target, resulting in superior imaging on long ranges.

IN THE BOX :

1 Quantum Radome
2 10 m (32.8 ft.) Power cable
3 M8 mounting bolts with spring washers and flat washers x4
4 Documentation
