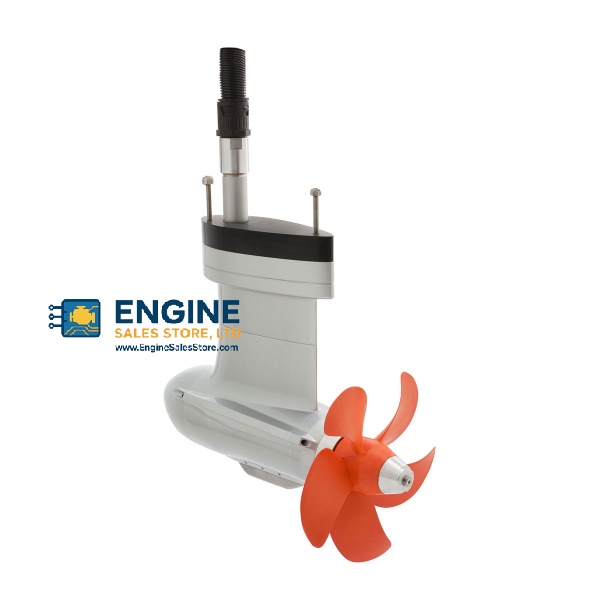

High-efficiency pod motor (fixed), 25 hp equivalent
TorqLink data interface - enables fast data exchange between TorqLink components without a gateway
Battery connection cable with waterproof battery pole terminals (IP 66) for connecting up to two Power 48-5000
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery.

TorqLink is Torqeedo’s advanced electronics communication system developed for Deep Blue and now available for select Cruise motors, throttles and Power 48-5000 batteries. All products marked TorqLink will communicate seamlessly at startup. A TorqLink Gateway (2217-00) allows you to include components without TorqLink in your system.

SPECS :

Input power in watts    12,000
Propulsive power in watts    6,720
Comparable diesel inboards (propulsive power)    25 HP
Comparable diesel inboards (thrust)    25 HP
Maximum overall efficiency in %    56
Static thrust in lbs*    up to 405
Integrated battery    -
Nominal voltage    48
Final charging voltage    -
Total weight in kg    33.5
Motor weight without battery in kg    -
Weight of integrated battery    -
Shaft length in cm    -
Standard propeller
(v = speed in km/h at p = power in watts)    v15/p10k
Alternative propeller options    v15/p10k Cruise 10.0 (Folding Propeller)
v22/p10k
v32/p10k
Propeller Guide
Maximum propeller speed in rpm    1,400
Control    TorqLink throttle**
TorqLink    Yes
Steering    -
Tilting device    -
Trim device    -
Integrated on-board computer    Yes
Stepless forward/reverse drive    Yes

Important Information

Gateway TQ-Bus/TQ-Can and On/Off Switch for Power 48-5000
At the start of production for the Power 48-5000, Cruise 4.0 and 10.0 motors will be compatible with the new battery
Power 48-5000 can be operated and switched on and off with the switch included in the scope of delivery of the new throttles part no. 1949-00,1950-00, 1951-00 and 1952-00. The gateway is also included in the scope of delivery of the new throttles
A separate Gateway including the On/Off-Switch (part no. 2217-00) is required, if Power 48-5000 is used with standard Cruise models TQ-Bus and their standard tillers and throttles
A separate On/Off-Switch (part no. 2215-00) is required, if Power 48-5000 is used with non Torqeedo consumers

Additional Information

Throttle included - best to use with TorqLink throttle with colour display

Equipment included: Pod motor (fixed) with TorqLink data communication, cable set (4.5 m, 95 mm2) including main switch and v15/p10k propeller, TorqLink data cable 3 m
Take a look at our Cruise Info Tool for helpful information
Warranty: 2 years for non-commercial use
