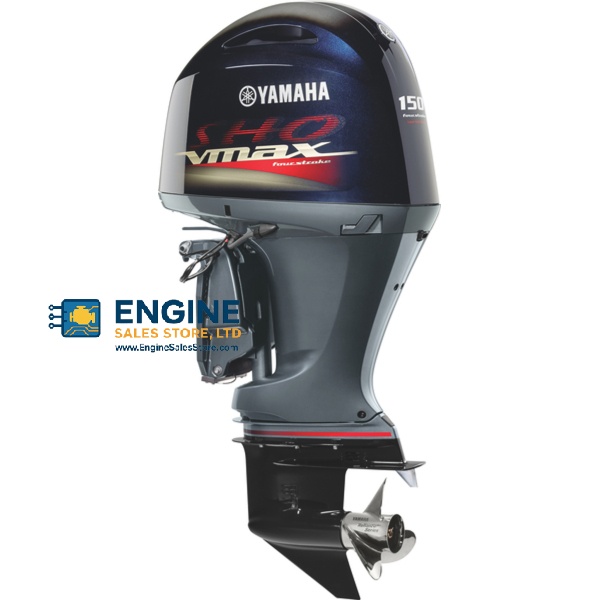

The In-Line Four V MAX SHO four strokes have achieved the unthinkable—packing signature V MAX SHO hole shot and acceleration into streamlined designs. Overall, this series of 1.8- and 2.8-liter dynamos features a surprising tech package with 16 valves, single- or double-overhead cams and electronic fuel injection—for maximum efficiency and high performance. This makes the I-4 V MAX SHOs perfect for smaller bass, flats and bay boats and other performance hulls. With the option of a 25-inch shaft for all of our I-4 V MAX SHO outboards, anglers prowling big waters on multi-species, bay and flats boats have a competitive edge that runs deeper than ever.

The IBEX Award-winning I-4 V MAX SHO 150 was the first of its kind, inspiring the VF175 and VF115. With exhilarating top speed and a 7.7-second hole shot, it serves up signature V MAX SHO performance.

KEY FEATURES

Extra Space: A four stroke in-line design means there's no need for an external oil tank. That means less weight and more storage room in the boat for tackle and gear.

Ample Charging Power: With 50 amps for the I-4 V Max Sho 150, the alternators produce enough power for battery charging and a range of on-board electronics.

Easy Rigging: I-4 V MAX SHO outboards feature mechanical controls for easy, convenient rigging with most bass, bay and flats boats, and are compatible with analog, 6Y5 digital or Command Link gauges.

SPECS :

Engine Type    Inline 4
Displacement    2.8L
Bore x Stroke    96 x 96.2mm (3.78 x 3.79in)
Prop Shaft Horsepower    150 hp at 5500 rpm
Full Throttle RPM Range    5000 ~ 6000 rpm
Alternator Output at W.O.T.    50 Amp
Compression Ratio    10.3:1
Fuel Induction System    EFI
Weight †    218 kg (480 lbs)
Recommended Fuel    Octane 89
Recommended Engine Oil    Yamalube 4M (See owner's manual)
Recommended Fuel Filtration    Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating    3-Star
Exhaust    Through Propeller
Intake    16
Ignition    TCI Microcomputer
Spark Plug    LFR6A-11
Alternator Output    50 Amp
Starting System    Electric
Lubrication    Wet Sump
Engine Oil Capacity    4.5L/4.3L
Recommended Cooling    Thermostatic Control
Ethanol Blend Limit    10% Maximum
Gear Ratio    2.00:1
Gear Shift    Forward, Neutral, Reverse
Shaft Length    20" - 25"
Degree of Tilt    70°
Degree of Trim    -4° through 16°
Dry Weight    20" shaft / 218 kg (480 lbs), 25" shaft / 218 kg (489 lbs)
Mounting Centers    N/A
Steering Angle (maximum)    32° from center, either direction
Warranty    Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial

STANDARD FEATURES

Power Trim & Tilt
Owner's Manual
Prop included
