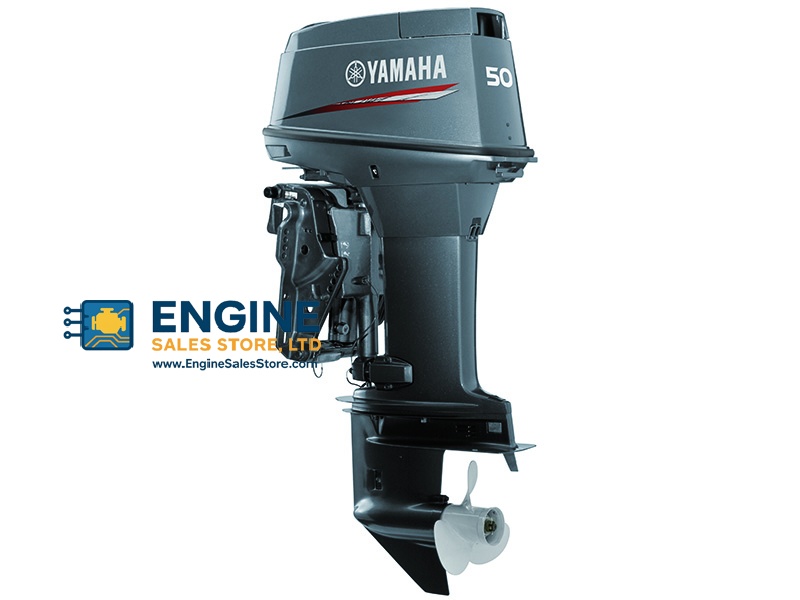

Yamaha 50HWHTOL 50hp 2-Stroke Outboard Engine Long Shaft, Electric Start, Power Trim & Tilt, Oil Injected

Here’s a range that offers terrific, versatile engines with unbeatable value for money, outstanding power to weight ratios and world renowned reliability.

Our proven three cylinder design with loop charging fuel intake delivers great fuel economy and smooth, responsive acceleration.

Excellent reliability

CDI ignition provides automatic spark advance to provide maximum power throughout the whole RPM range
Loop charging boosts power and fuel efficiency
Precision Blend oil injection system (on applicable models) guarantees the optimum smooth running, excellent durability and eliminates the need for pre-mixing two stroke fuel.

Sharp responsive power
Three cylinder design has stood the test of time and proven to be hugely successful with a range of boat owners.

Available in:

50HETOL - Electric Start,Tilt System - Electric Start, Precision Blend Oil Injection, Transom height - Long
50HWHTOL - Manual & Electric Start, Tiller Handle, Tilt System - Electric Start , Precision Blend Oil Injection, Transom height - Long
50HMHDL - Manual Start, Tiller Handle,Tilt System - Tiller Handle, Hydro Tilt, Transom height - Long

General Features:

Precision blend
24 L Fuel tank & hose
Steering arm
PT&T
Prime start
Engine mounted oil reservoir

Specifications:

Engine Type    2-Stroke, In-line 3
Displacement    698.0 cc
Bore x Stroke    67 x 66 mm
Recommended Max RPM    5000-5500
Lubrication System    Oil injection (ETO, WHTO), Pre-mixing (MHD)
Fuel Management    Carb
Ignition    CDI
Starter System    Electric (ETO), Manual (MHD), Manual & electric (WHTO)
Lighting Coil    12V - 80W (MHD)
Alternator Output    12V - 6A with rectifier regulator (ETO, WHTO)
Operation Method    Remote control (ETO), Tiller handle (WHTO, MHD)
Trim & Tilt Method    Power trim & tilt (ETO, WHTO), Hydro tilt (MHD)
Digital Gauges    Standard (ETO)
Fuel Tank Capacity    24.0 L
Gear Ratio    1.85 : 1

Dimensions:

Transom Length
50HETOL : 533 mm (21 in)
50HWHTOL : 533 mm (21 in)
50HMHDL : 533 mm (21 in)

Weight:

50HETOL : 87 kg
50HWHTOL : 93 kg
50HMHDL : 84 kg

CDI-E: CDI-Electronic Automatic
CDI-M: CDI-Microcomputer
