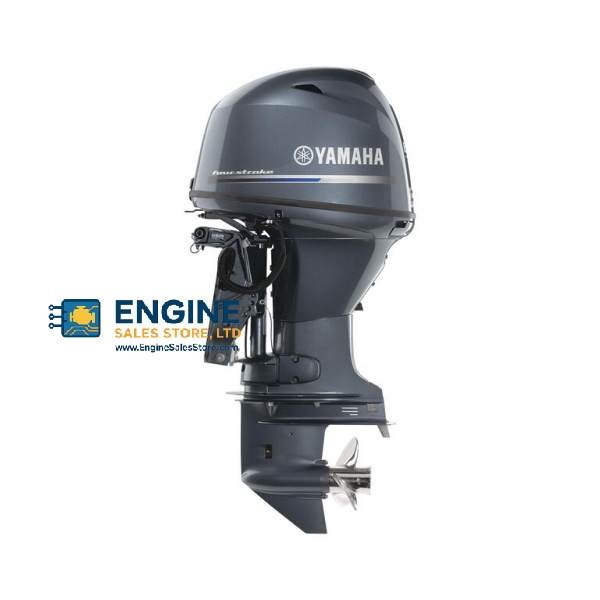

MIDRANGE 60 hp

Our 1-liter 60-hp midrange offers light weight and exhilarating performance. A dynamite choice for the inshore angler, it gives you the option of dialing in trolling speeds in precise, 50-RPM increments. Depending on your gauge and control preference, the F60 allows you to access to our Variable Trolling RPM Switch (VTS) via our Multi-Function Tiller Handle, Command Link Tachometer or a helm-mounted remote VTS switch.

Available for mechanical remote or tiller control
Only 247 pounds
Available in a 20” shaft
Powerful 16-amp alternator
Optional Variable Trolling RPM Switch (VTS)
Available in a T60 High-Thrust model for heavy loads and an F60 Jet-Pump model for shallow water (F60 Jet model produces 40 horsepower at the jet pump nozzle)

SPECS:

ENGINE TYPE    4-cylinder
DISPLACEMENT    996cc (60.8ci)
BORE & STROKE    65x75mm (2.56x2.95in)
RPM RANGE    5000-6000
COMPRESSION RATIO    9.5:1
INDUCTION SYSTEM    SOHC
ALTERNATOR OUTPUT    17 Amps
FUEL DELIVERY    EFI
STARTING    Electric
IGNITION    TCI microcomputer
LUBRICATION    Wet sump
DEGREE OF TRIM/TILT    -4° through 20°/69°
EXHAUST    Through Prop
COOLING    Water/Thermostatic Control
GEAR SHIFT    F/N/R
GEAR RATIO    13.24 (1.85)

FUEL & LUBRICATION

RECOMMENDED FUEL    Regular Unleaded (Minimum Pump Octane 87)
RECOMMENDED OIL    Yamalube 4-M FC-W 10W-30 or 20W-40
OIL CAPACITY    2L (2.1 qt)

DIMENSIONS

SHAFT LENGTH    20"
DRY WEIGHT    112kg (247 lbs)
