Features:

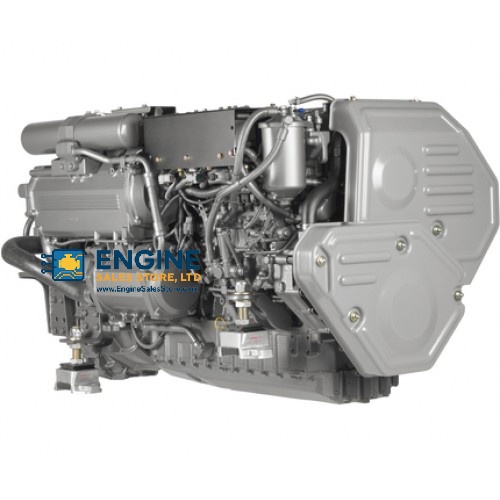

Yanmar 6LY3-ETP 480 HP Marine Diesel Engine Inboard

Specifications:

Configuration: 24 valve, 4-stroke, vertical, water-cooled diesel engine
Maximum output at crankshaft: 353 kW@3300 rpm [480 HP@3300 rpm]
Displacement: 5.813 ltr [354 cu in]
Bore x stroke: 106 mm x 110 mm [4.17 in x 4.33 in]
Cylinders: 6 in line
Combustion system: Direct injection
Aspiration: Turbocharged with seawater cooled intercooler
Starting system: Electric starting 12V - 3 kW
Alternator: 12V - 80A
Cooling system: Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump
Lubrication system: Enclosed, forced lubricating system
Direction of rotation [crankshaft]: Counterclockwise viewed from flywheel side
Dry weight without gear: 640 kg [1411 lbs]
Environmental EU: RCD EMC US: EPA Tier2 IMO: MARPOL 73/78 Annex VI
Engine mounting: Rubber type flexible mounts
Factory Warranty: 2 Years

Package Include:

Alternator 12V - 80A
Exhaust mixing elbow [L-type]
Air heater
Fuel/water separator
High-riser mixing elbow [instead of L-elbow]
Lub oil evacuation pump
Remote oil filter opposite side
Air vent for coolant tank
Flexible mounts
Choice Of Transmissions: KMH61A or KMH61V
