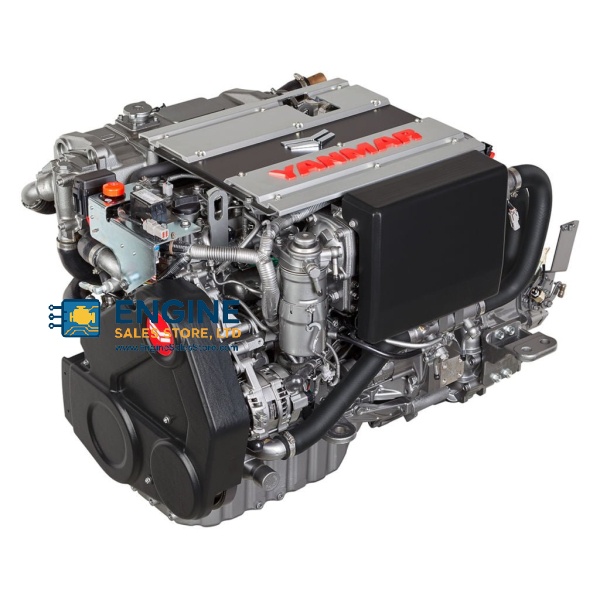

The 4LV proves to be an extremely efficient engine without any compromise on quality. Featuring the newest system in common-rail technology, the mid-range engines deliver maximum performance and reliability, while maintaining minimal fuel consumption and exceptionally low noise & emission levels. By exceeding the strict EPA Tier 3 and EU RCD Stage 2 emission regulations, the engines feature virtually smoke and odor free operation. Equally, the 4LV doesn’t disappoint in performance. The 2.8 L displacement delivers a powerful low-end torque performance. This results in a stunning acceleration and really sets these engines apart from others in their power range. To ensure support of advancing marine technologies, direct connectivity to NMEA and J1939 CAN-bus networks has been purpose engineered into the 4LV range, allowing future-proofed integration to any multifunction bridge display.


Specifications

Rated Output
169 kW / 230 mhp

Rated Speed
3800 rpm

Displacement
2.755 L / 168 cu. in

No. of cylinders
4 cylinders

Cylinder Bore x Stroke
92 mm x 103.6 mm / 3.6 in x 4 in

Combustion system
Direct Injection, Denso Common Rail System

Aspiration
Turbocharged & Intercooled

Alternator
Denso 12V - 130A

Dry weight without gear
334 kg / 736 lbs

Dimensions
1151 mm x 755 mm x 772 mm

Controls
Mechanical (optional - VC10 system)

Certifications
RCD 2 IMO Tier 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS

NOTE:

1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KMH50A marine gear
(Dimensions may vary with other gears/elbow)


Standard Engine Package

Exhaust mixing elbow [L-type]*
Through drive exhaust**
Alternator 12V – 130A
B25 panel*
VC10 Vessel Control System**
Power steering**
Mechanical throttle sensor*
Flexible mounts
Fresh water expansion tank

*Inboard model
**Sterndrive model

Optional Accessories

High-riser mixing elbow [instead of L-elbow]*
Through hull exhaust**
Secondary alternator 12V – 130A or 24V – 110A including smart regulator
Extension harness [3m, 5m, 10m, 20m]
Second station
C35 panel*
Sidemount control head*
VC10 Vessel Control System*
JC20 Inboard Joystick*
JC10 Sterndrive Joystick**
NMEA2000 Engine monitoring system
Internal tie-bar
Semi 2-pole
SOLAS including Certificate [factory fit only]
Hot water connection
Water separator
Man Over Board Switch (single)
C-Type trolling (KMH50 only)*
On-board spare parts kit
