SPECS :

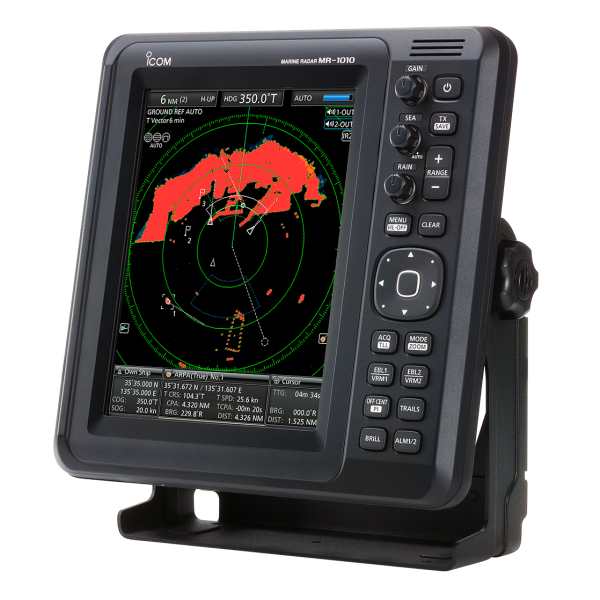

Display Unit
Display type    10.4-inch Color TFT LCD
Resolution    480 × 640 dots
Minimum range    25 m; 82 ft (at 1⁄8 NM range)
Maximum range    36 NM
Range scales    NM    1⁄8, 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4,
6, 8, 12, 16, 24, 32, 36
km    1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4,
6, 8, 12, 16, 24, 32, 36, 48
Preheat time    90 seconds
Power supply    10.2–42 V DC
Power consumption
(at zero wind velocity)    55 W (approximately)
Usable temperature range    −15°C to 55°C; 5°F to 131°F
Input data format    NMEA 0183, N 1, AUX, IEC61162-2
Output data format    NMEA 0183

Scanner Unit
Type    60 cm; 2 ft radome scanner
Rotation speed    24, 36 rpm typ.
Horizontal beamwidth    4° typ.
Vertical beamwidth    22° typ.
Sidelobe    −22 dB typ.
Usable temperature range    −25°C to 70°C; −13°F to 158°F
Usable humidity range    Less than 95% (at 40°C; 104°F)
Frequency    9410 MHz ±30 MHz
Modulation    P0N
Peak output power    4 kW
Pulse-width/repetition rate    80 ns/2160 Hz, 80 ns/1440 Hz,
250 ns/1440 Hz, 350 ns/1440 Hz,
900 ns/720 Hz
Modulator    FET switching
Intermediate frequency    60 MHz (EUR Version), 250 MHz (EXP Version)
IF bandwidth    10 MHz / 3 MHz (EUR Version), 15 MHz / 3 MHz (EXP Version)
Tuning    Auto/manual selectable
Supplied system cable    15 m; 49.2 ft (OPC-2341)

Applicable IP Rating
Ingress Protection Standard
Display unit    IPX4 (Water resistance)
Scanner unit    IPX6 (Powerful jet water protection)
All stated specifications are subject to change without notice or obligation.

Supplied Accessories

Scanner unit
System cable (15 m)
