POWERFUL OPEN ARRAY RADAR

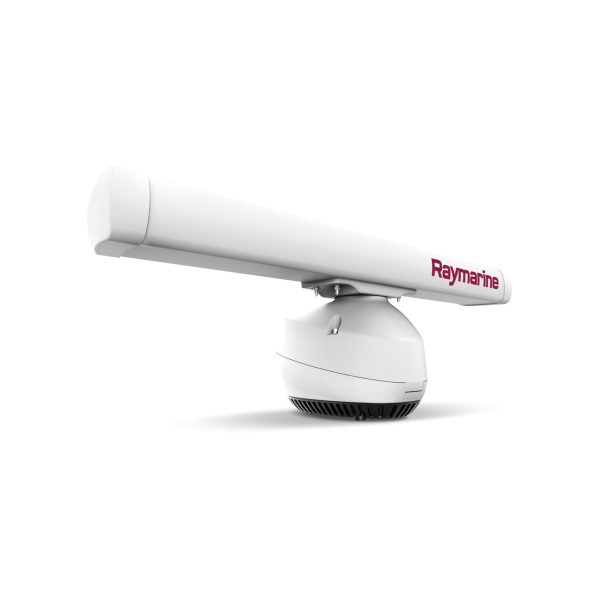

Magnum 12 kW is our most powerful Magnum open array radar. Available with either a 4-foot or 6-foot open array antenna, Magnum 12 kW is the choice of marine professionals and offshore enthusiasts. Choose the 4-foot model for high performance, compact radar, or experience the benefits of extended range and improved target resolution with the 6-foot array option.

KEY MAGNUM RADAR FEATURES

Magnum is available in 4kW or 12kW power output options, and with either a four-foot or six-foot antenna array option. Using proven magnetron transmitter technology, Magnum offers a maximum range of up to 96nm for 12kW models – ideal for blue water vessels – and up to 72nm for 4kW models. The perfect companion to Raymarine’s award-winning Axiom® chartplotter displays, Magnum is also backward compatible with legacy models, including:
LightHouse 2-based a, c, e, eS, and gS-Series MFDs
C-Series Widescreen and E-Series Widescreen MFDs
E-Series Classic, G-Series Multifunction Displays

Superior Bird Mode

Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.

Enhanced Radar Imaging

Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.

Best in Class Target Tracking

Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.

True Trails

Magnum features True Trails target history. The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart manoeuvring decisions to pass safely.

Real Time Heading Updates

Connect Magnum with Axiom and LightHouse OS and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.

IN THE BOX :

1 Pedestal
2 Documentation
3 Denso paste
4 Lifting sling
5  Studs x 4
6 Plain washers x 4
7 Spring washers x 4
8 Nuts x 8
9 Cable tightening tool
10 Radar-RayNet & power cable (15 m 49.21 ft))
11 VCM100 mounting screws x 2
12 VCM100 cable clamp mounting screws x 3
13 VCM100 Voltage Converter Module
14 VCM100 cable clamp
15 Antenna (4 ft or 6 ft)
16 Threaded alignment guides x 4
17 Plain washer x 4
18 Spring washers x 4
19 Nuts x 4
